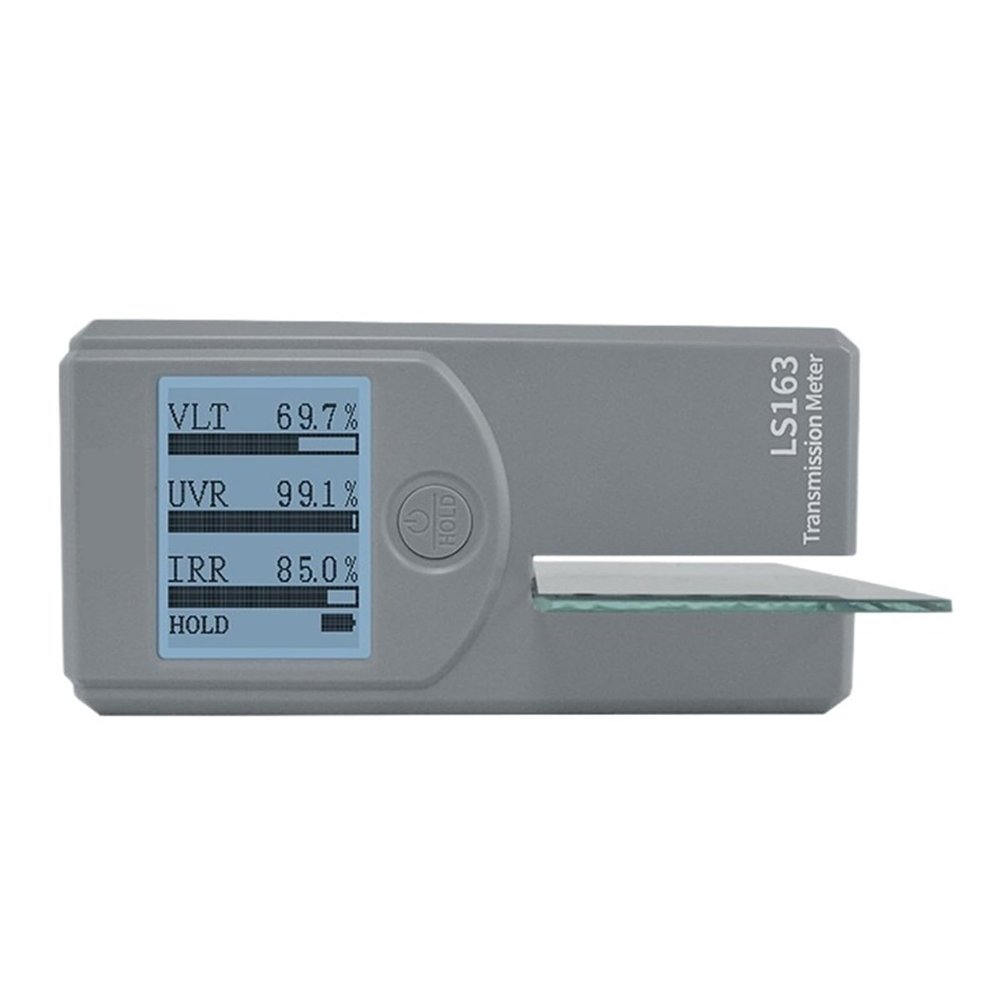

Window Tint Meter Solar Transmission Meters LS163A Stick-Film Glass Rotatable Display UV 365nm and IR 1400nm VLT 6mm Thickness with Automatic Calibration(LS163)

Description

• 1. Measurement of transmittance, infrared and ultraviolet rejection and transmittance
• 2. Test results will be displayed on interface immediately after putting the materials into the test slot
• 3. It can test materials such as solar film, laminated glass and automobile side glass with 6mm test slot
• 4. The display interface can be rotated in four angles, convenient for reading data measured at different angles
• 5. With real-time dynamic calibration, after power on, transmittance is calibrated to

Description
LS163/LS163A window film transmission meter is suitable for measuring the optical performance of uniform transparent materials such as solar film, laminated glass, heat-insulating glass and automobile side glass. Measurement of transmittance, infrared and ultraviolet rejection and transmittance. It has three display interfaces, which can display the transmittance or rejection and transmittance at the same time. The display interface can be rotated from four angles, which is convenient for reading when measuring from different angles

Specifications
1. UV Peak wavelength: 365nm
2. IR Peak wavelength: 940nm/1400nm optional
3. Visible light: 380-760nm, conform to the CIE photopic luminosity function
4. Accuracy:2% (Colorless and transparent material)
5. Resolution: 0.1%
6. Test Slot: 6mm *58mm (W*D)
7. Dimension: 146 mm 73 mm 24 mm (L*W*H)
8. Display: 128*128 Dot matrix LCD
9. Weight: 187g (Include Batteries)
